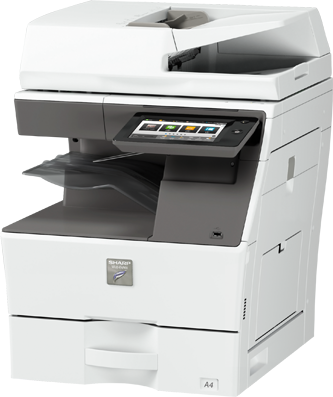

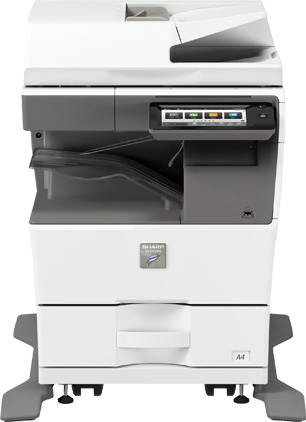

The MX-B456WH compact A4 MFP brings you fast, convenient printing, copying and scanning with output speeds of 45ppm in black and white.

"*" indicates required fields

Step 1 of 2

Name
  • Designed to keep your valuable business information secure, but also to enable flexible workflows – providing exceptional ease-of-use, simple connectivity and effortless mobility to optimise workforce efficiency.

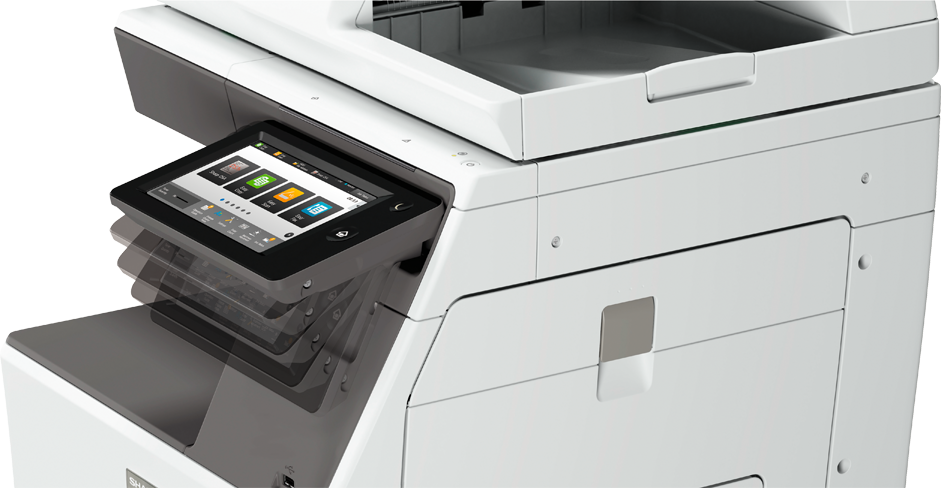

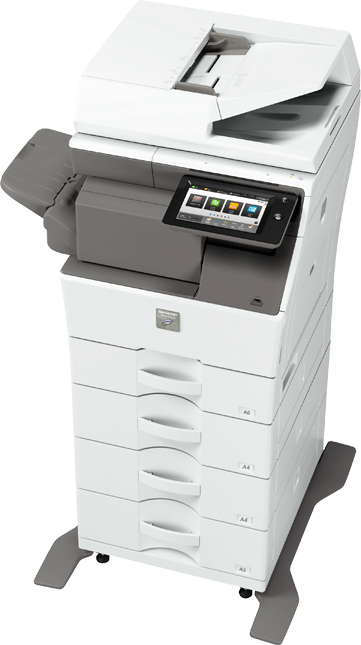

  • You’re guaranteed an enhanced user experience with the 7.0-inch colour LCD touchscreen, which can be tilted and customised to suit your way of working plus with the space-efficient modular design this MFP will suit any office environment, whether used as a desk top configuration or fully configured floor-standing configuration; and you get both quantity and quality thanks to the standard 550 sheet paper capacity (expandable to 2,350 sheets) and the optimal finishing capabilities for professional documents.
  • Thanks to the future-proof capabilities of the MX-B456WH, all networks and data are protected – the comprehensive layers of security provide effective protection for both your network and your data. As a result, you can enjoy complete peace of mind knowing that your business and its data are proactively protected by the highest level of security
  • The MX-B456WH offers a 100 sheet Duplex Single Pass Feeder and boasts black and white and colour scanning for fast document digitisation, putting you in control of your document workflow. And because we know that not everything you want to scan is a document, you can also quickly and accurately scan ID and business cards with ease.
  • Featuring NFC and QR Code capabilities, means you can connect via your mobile device for easy printing and scanning wherever you are and Sharp’s Open Systems Architecture allows you to integrate the MFP with network and cloud-based applications, while single sign-on allows you to access public cloud services directly from the MFP to increase productivity and save time.
  • The innovative Eco Scan and Eco Recommendation functions further promote energy saving, giving you total peace of mind that you’re only using power when necessary.
  • Print, copy, Scan, Fax, File
  • Pages per minute: 45 B/W
  • Paper capacity: Std 550 Max 2350 sheets
  • Compact A4 Black and White MFP with space-saving inner finisher

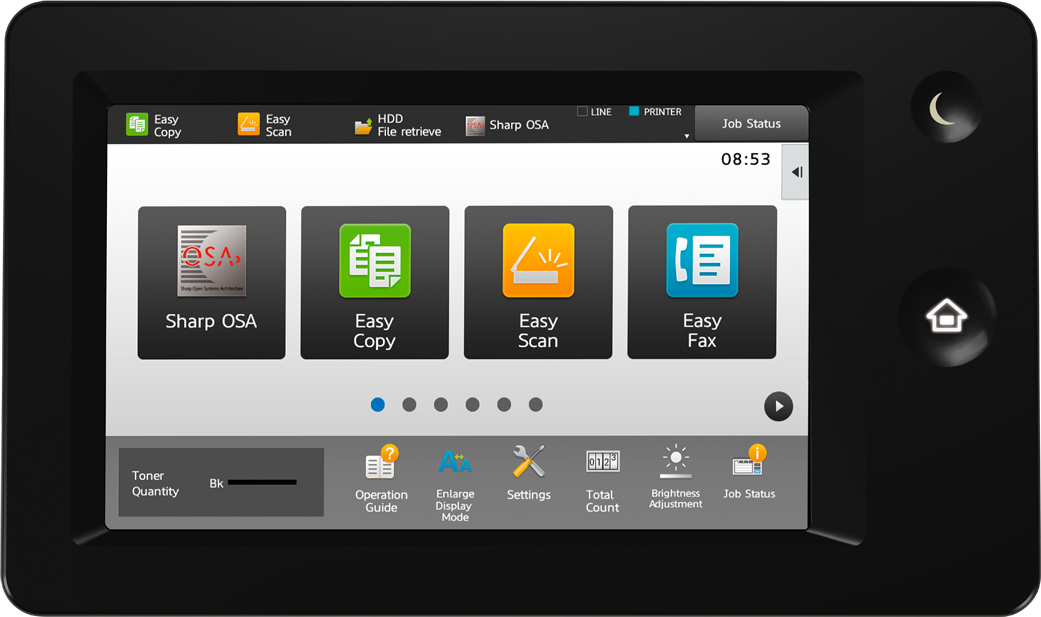

  • Tiltable 7.0-inch colour LCD touchscreen with easy UI mode
  • B/W and colour scanning for fast document digitisation
  • Advanced data protection and access control with SSL validation and whitelisting

General

Model MX-B456W/B456WH MX-B356W/B356WH
Type Desktop
Engine speed A4*1: Max. 45/35 ppm
Letter (8 1/2″ x 11″)*1: Max. 47/37 ppm
Control panel display 7.0-inch colour LCD touchscreen
Paper size Max. A4 (8 1/2″ x 14″), min. A6 (5 1/2″ x 8 1/2″)
Paper capacity
(80 g/m2)		 Standard 550 sheets
(500-sheet tray and 50-sheet multi bypass tray)
Maximum 2,350 sheets
(550 sheets & optional 600-sheet tray x 3)
Paper weight Tray 1 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond)
Trays 2–4 (MX-CS14 N) 55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover)
Multi bypass tray 55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover)
Warm-up time*2 20 sec.*3
Memory 5 GB (copy/print shared)    500 GB HDD*4
Power requirements Rated local AC voltage ±10%, 50/60 Hz
Power consumption Max. 1.84 kW (220 V to 240 V)
Dimensions (W x D x H)*5 492 x 517*6 x 638 mm
(19 3/8″ x 20 23/64″ x 25 1/8″)		 492 x 517*6 x 588 mm
(19 3/8″ x 20 23/64″ x 23 5/32″)
Weight (approx.) 33 kg (72.8 lbs) 31 kg (68.4 lbs)

Copier

Model MX-B456W/B456WH MX-B356W/B356WH
Original paper size Max. A4 (8 1/2″ x 14″)
First copy time*7 3.7 sec. 5.3 sec.
Continuous copy Max. 9,999 copies
Resolution Scan 600 x 600 dpi, 600 x 400 dpi
Print 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode)
Gradation Equivalent to 256 levels
Zoom range 25% to 400% (25% to 200% using DSPF/RSPF) in 1% increments
Preset copy ratios Metric: 10 ratios (5R/5E), inch: 7 ratios (4R/3E)

Scanner

Model MX-B456W/B456WH MX-B356W/B356WH
Scan method Push scan (via control panel)
Pull scan (TWAIN-compliant application)
Scan speed*8
(colour & B/W)		 One-sided: Max. 70 originals/min.
Two-sided: Max. 110 originals/min.		 One-sided: Max. 40 originals/min.
Resolution Push scan 100, 150, 200, 300, 400, 600 dpi
Pull scan 75, 100, 150, 200, 300, 400, 600 dpi
50 dpi to 9,600 dpi via user setting*9
File formats TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, compact PDF*10, JPEG*10, XPS, searchable PDF, OOXML (docx, xlsx, pptx), text (TXT [UTF-8]), rich text (RTF)
Scan destinations Scan to e-mail/desktop*11/FTP server/network folder (SMB)/USB drive/HDD

Document Filing

Model MX-B456W/B456WH MX-B356W/B356WH
Document filing capacity*12 Main and custom folders: 20,000 pages or 3,000 files
Quick file folder: 10,000 pages or 1,000 files
Stored jobs Copy, print, scan, fax
Storage folders Quick file folder, main folder, custom folder (max. 1,000 folders)

Printer

Model MX-B456W/B456WH MX-B356W/B356WH
Resolution 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
Interface USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T,

wireless LAN (IEEE 802.11 b/g/n)
Supported OS Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 7, Windows® 8.1, Windows® 10, Windows® 11,
Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15
Network protocols TCP/IP
Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD
PDL PCL 6 emulation, Adobe® PostScript® 3™
Available fonts 80 fonts for PCL, 139 fonts for Adobe® PostScript® 3™

Facsimile

Model MX-B456W/B456WH MX-B356W/B356WH
Compression method MH/MR/MMR/JBIG
Communication protocol Super G3/G3
Transmission time Less than 3 seconds*13
Modem speed 33,600 bps to 2,400 bps with automatic fallback
Transmission resolution From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi)
Recording size A4 to A5 (8 1/2″ x 14″ to 5 1/2″ x 8 1/2″)
Memory 1 GB (built-in)
Greyscale levels Equivalent to 256 levels
