T3160 Series

T3160 Series
The SC-T3160 features Epson’s latest PrecisionCore™ print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 34s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements.

"*" indicates required fields

Step 1 of 2

Name
  • High Productivity – prints an A1 image in as little as 34s and includes an integrated auto-cutter
  • High Precision – 2400x1200dpi resolution Epson PrecisionCore™ print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
  • High Durability – all-pigment Epson UltraChrome™ XD2 ink dries almost instantly to be moisture & scratch resistant
  • High Reliability – solid construction backed with a comprehensive ‘heads-n-all’ warranty with service cover extendable up to 3 years1
  • High Flexibility – supports roll paper up to 24″ (610mm) wide, sheet paper up to A1 and has integrated scanner support for optional MFP functionality3
  • High Convenience – large 4.3″ touchscreen panel with easy to use interface, top loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, auto sheet/roll switching, single page prints are held by the printer for easy removal while the floor standing model ships with a basket
  • Low Running Cost – ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 80ml
  • Easy Integration – compact design, high speed Gigabit Ethernet, convenient WiFi/ WiFi Direct & AirPrint support, HP-GL/2 & RTL emulation2
SIZE
Max Print Width 24 inch wide (610mm)
PRINT TECHNOLOGY
Print Head PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes Uni & Bi-directional
Nozzle Configuration 800 per colour
Maximum Resolution 2400dpi x 1200dpi
Minimum Ink Droplet Size 4.0pl
INK SYSTEM
Family Epson Ultrachrome® XD2
Type All-Pigment Aqueous
Colours C+M+Y+K
Cartridges CMY 26/50ml
K 50/80ml
PERFORMANCE (per Sheet)
CAD A1 34sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type.
MEDIA SUPPORT
Roll Format Single roll top loaded spindle, 2″ core, 0.05-0.21mm thick, 329-610mm wide, 119mm max diameter, 4.2 kg max weight
Sheet Format Top loaded A4-A1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick
Auto Cutter Inbuilt rotary type
Manual Double Sided Printing Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
Output Single sheet hold feature
Supplied with an A4/A3 output tray
Floor-standing model and optional Printer Stand incorporates a media basket
OPERATION
Control Panel 4.3″ Colour LCD touch screen
Control Code ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Compatibility Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory 1GB RAM
Scanner Support USB interface with integrated control & auto enlargement
Supports 5×7″, Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes
Supports A2, US-C (17×22″), B2, US-D (22×34″), A1 & custom (89-610mm wide) output page sizes
Supports Epson DS-530, DS-6500 & DS6000 scanner models
Physical (WxHxD) Desktop: 970 x 230 x 505 mm, 27kg (no consumables, media or options, no output tray, ASF closed)

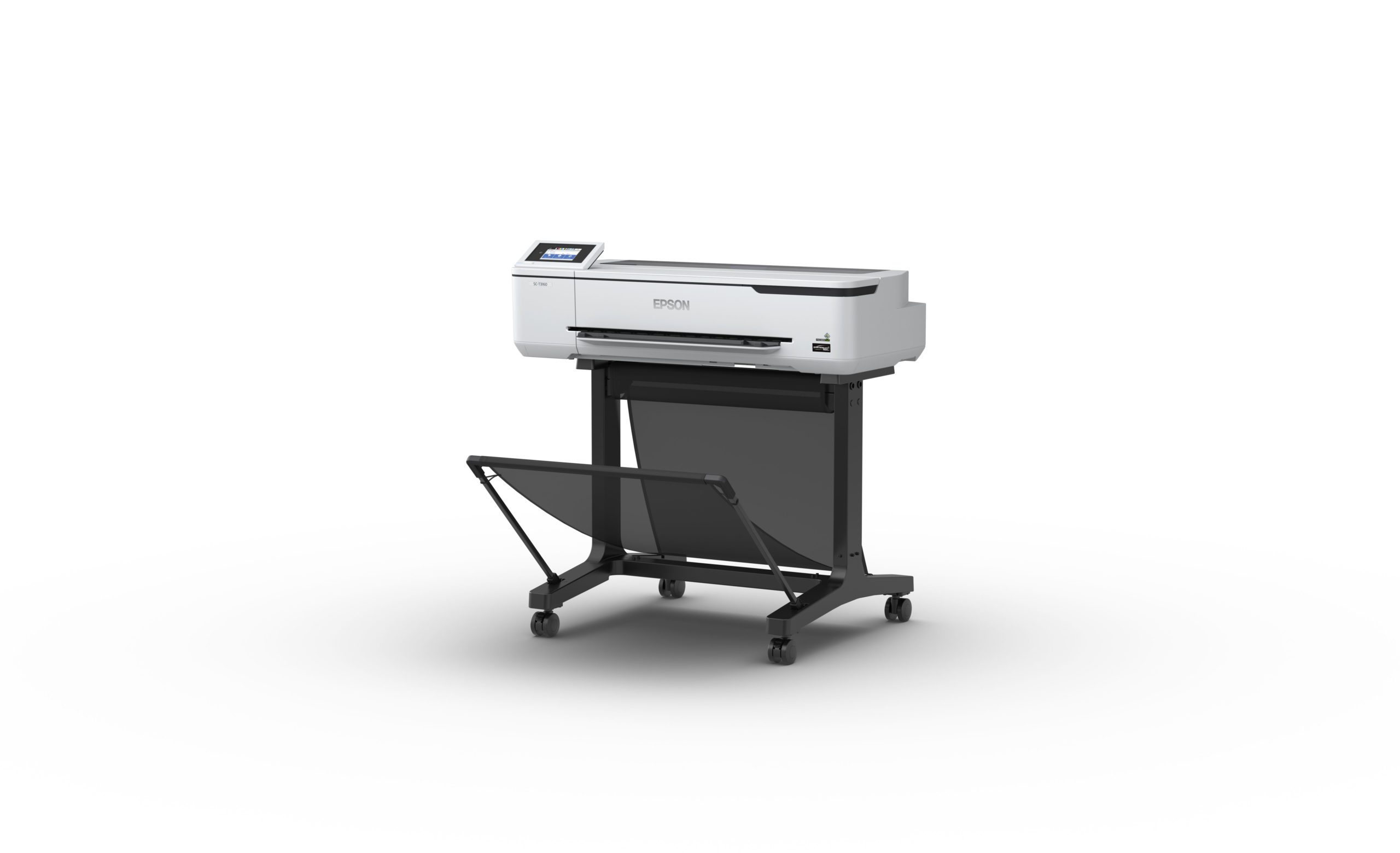

Floor Standing: 970 x 913 x 696 mm, 38kg (closed basket, no consumables, media or options, no output tray, ASF closed)
ENVIRONMENT
Operational Temp 10° to 35° C
Operational Humidity 20 to 80% (no condensation)
Power Supply 100 – 240 V AC, 50/60 Hz
Power Consumption 28W Operating, 8W Standby, 1.6W Sleep
Operating Noise 49dB
Recommended Install Space (WxHxD) Desktop: 1020 x 380 x 915mm
Floor-standing: 1020 x 1063 x 1270mm
SHIPPING INFO
Packaging (WxDxH) Desktop: 1206 x 724 x 522mm, 37Kg
Floor standing: 1206 x 724 x 587mm, 49Kg
What’s in the Box Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations.
Delivery & Install Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas.
CONFIGURATION OPTIONS
SCT3160N1YR Desktop with 1Yr On-Site Warranty (Available from Officeworks)
SCT31601YR Floor Standing with 1Yr On-Site Warranty
SCT31603YR Floor Standing with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
OPTIONAL ACCESSORIES
C12C933151 24″ Printer Stand (included with all configurations other than the SCT3160N1YR & SCT3160M versions)
C12C933211 Additional Roll Feed Spindle for T3160 & T3160M (24″)
1YWTSCT3160 1 Yrs Epson CoverPlus On-Site Printer Service Pack**
2YWTSCT3160 2 Yrs Epson CoverPlus On-Site Printer Service Pack**
** Epson CoverPlus Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, and 3 year periods (total cover cannot exceed 3 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms.
