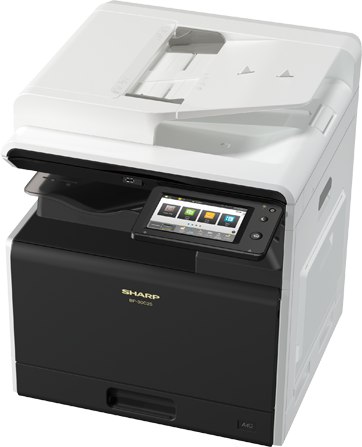

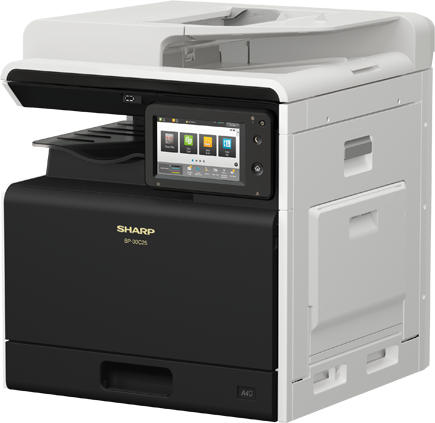

Compact Size
Measuring just 560 x 560 x 653 mm, this MFD is small enough to place almost anywhere. Giving you the freedom to have an A3 MFD in the spaces and capacities that a regular A3 MFD wouldn’t physically fit.
Wireless Connection
The optional Wireless Adaptor offers ultra-handy wireless access via two easy modes, enabling access to the BP20C20 for convenient scanning and printing.
Made for Mobility*
Using the optional MXEB18 wireless LAN lets you connect the BP20C20/25 to any WiFi enabled device, so that anyone can print or scan directly from their smartphone, tablet or PC using AirPrint**, Google Cloud Print** or the free Sharpdesk Mobile app. **available at a later date

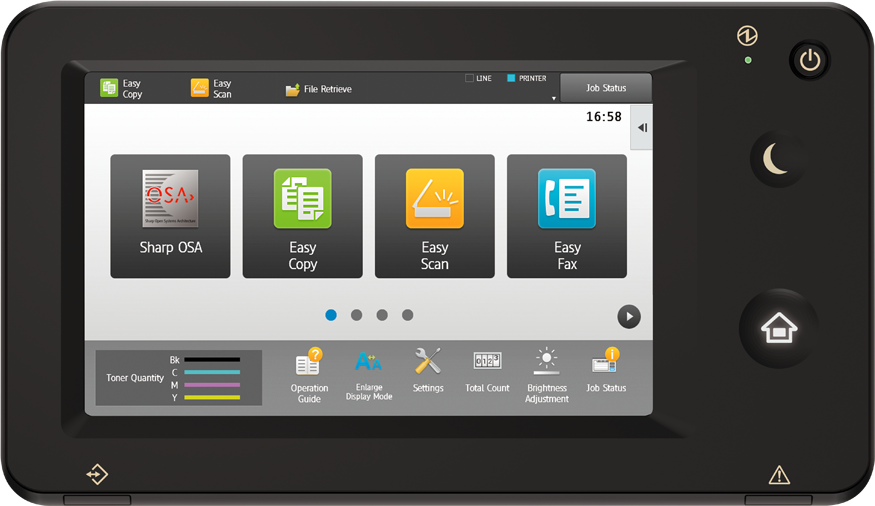

User Authentication
User authentication restricts access to the MFD by requiring a password. Up to 30 users can be registered this way.
Copier
Copy Speed 20/25 ppm (A4), 12/14 ppm (A3)
E-Sort / SOPM Yes / Yes
First Copy Time (OC) Colour: 11.5 sec B/W: 8.0 sec
Continuous Copy Max 999
Scan Resolution 600 x 600 dpi, 600 x 400 dpi
Zoom Range 25 – 400% (RSPF 25 – 200%) in 1% increments
Environmental
Power Supply/Consumption Max. 1.84 kW
TEC Value (Measured) 1.2 kWh / 1.6 kWh
Noise Operating: 50 dB, Standby 12 dB / Operating: 51 dB, Standby 13 dB

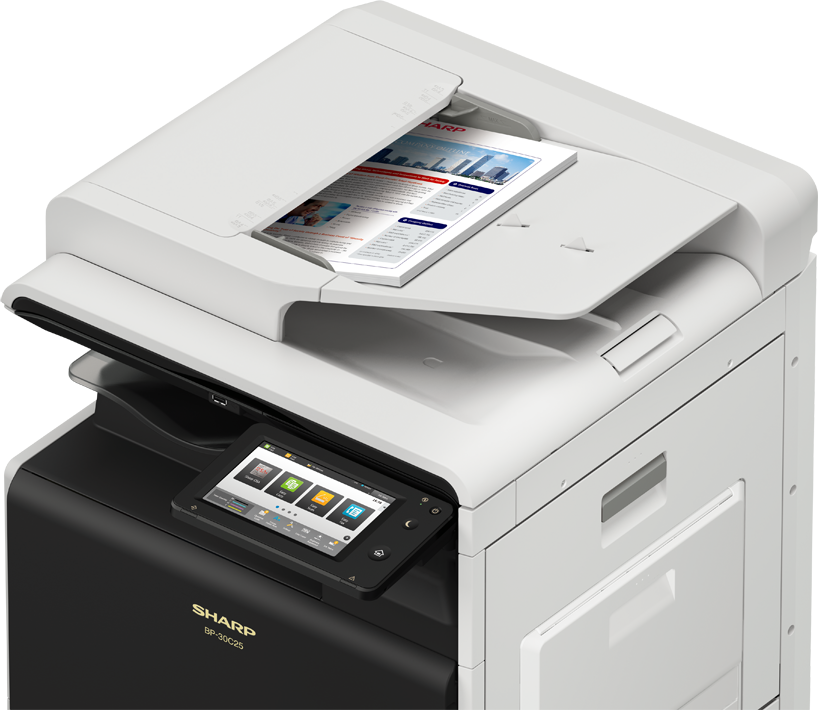

Document Feeder
Document Feeder Std. RSPF
Original Capacity Max 100 sheets
First Copy Time Colour: 14.8 sec / Mono: 10.5 sec
Scan Speed Scan Mode: B/W & Colour 110 opm (1-sided), B/W & Colour 220 opm (2-sided)
Filing
Quick/Main Folder N/A
Preview Thumbnails N/A
Printer Spec
Print Speed (Max) 20/25 ppm (A4), 12/14 ppm (A3)
PDL (Emulation) STD: PCL6, Opt. PostScript3 (Opt. MXPK11)
Interface USB2.0, 10Base-T / 100Base-TX / 1000BaseT
Wireless LAN Optional (MXEB18)
Protocol TCP/IP (IPv4, IPv6)
Supported OS Windows® 7*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 / 2019 (*32/64bit); Mac OS 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 & 10.14 with MX-PK11
Utility Software (Download) Status Monitor
Network Scanner
Resolution 100, 150, 200, 300, 400, 600 dpi
Format Mono: TIFF & PDF; Colour/Greyscale: TIFF, JPEG & PDF
Destination Desktop (NST-Lite), FTP, E-Mail, SMB Folder, USB & TWAIN
User Registration Max 200
Utility Software (Download) NST-Lite; Sharpdesk with Network Scanner Tool (user license required)
Facsimile
Model Opt : BPFX10
Communication Protocol Super G3
Transmission Speed 2 sec.range (Super G3/JBIG), 6 sec.range (G3/ECM)
Compression MH,MR,MMR,JBIG
Inbound Routing Yes (PDF Format)
PC Fax Yes (For Windows only)
