When speed and performance come together
Get cost savings while maximising print efficiency. Perfect for schools and offices that have a high print volume in black and white as well as central reprographics departments (CRDs) within large organisations. It’s a true all-rounder with print and scan capabilities as well as a huge range of finishing options
Maximise your print capacity and economy

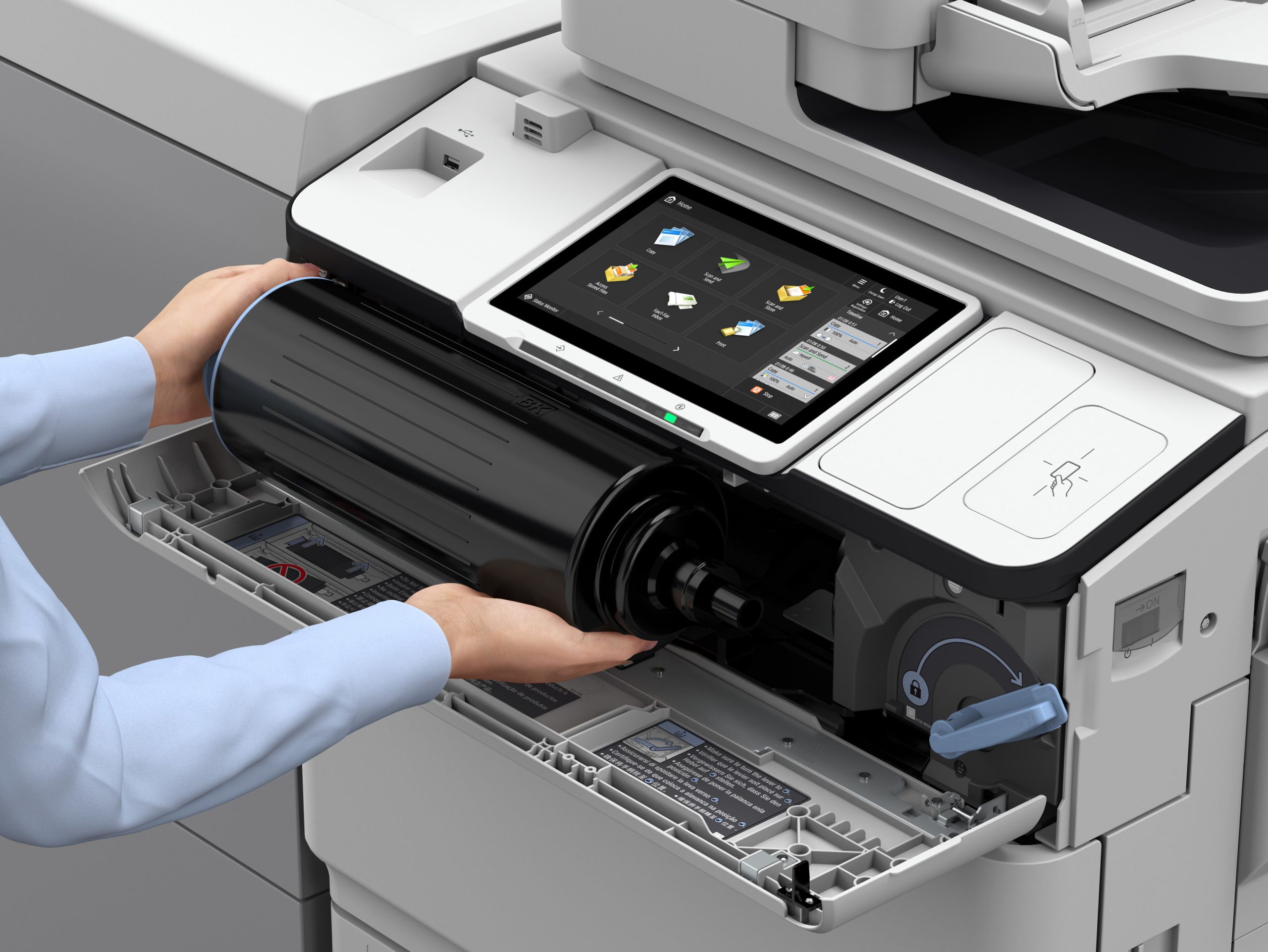

This model includes four standard paper decks and when you add the optional paper decks it enables a large-amount 5-way paper supply system to hold up to 8.860 sheets (64 gsm) in total. Our large capacity toner bottles will also keep you running efficiently.
Enhanced Security
System verification and secure boot from start up, that checks for modifications to boot code, OS, firmware and MEAP applications once device is on.
User friendly with smartphone technology
Take control of printing and scanning from a user friendly 10.1 inch WSVGA operation panel with keyless accessibility and smartphone functionality. Enjoy the efficiency of a large screen that displays recent and regular jobs on your timeline for retrieval.
Benefit from high security features embedded as standard
Your imageRUNNER ADVANCE DX 8700 Series delivers on security with forced hold functionality, free uniFLOW Online Express management that can enable device authentication so you can track printer usage, and Canon’s partnership with McAfee antivirus protection.
Superior user interface
Main menu and quick menu screens have been combined into one home screen, comprising on integrated menu and timeline, for enhanced operability.
| MAIN UNIT | |
| TYPE | Monochrome Laser Multifunctional |
| CORE FUNCTIONS | Standard: Print, Copy, Scan, Send, Store Optional: Fax |
| PROCESSOR | 1.75 GHz Dual Core Processor |
| CONTROL PANEL | Standard: 10.1″ TFT LCD WSVGA Color Flat-panel Optional: 10.4″ TFT LCD SVGA Color Upright-panel |
| MEMORY | 3.0 GB RAM |
| HARD DISK DRIVE | Standard: 250 GB Maximum: 1 TB |
| INTERFACE CONNECTION | Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: NFC, Bluetooth Low Energy Others Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Copy Control Interface |
| PAPER CAPACITY (LETTER, 20 LB. BOND) | Standard: 4,360 Sheets Maximum: 8,020 Sheets |
| PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) | With Copy Tray: 250 Sheets With External Finishers: 5,000 Sheets (with Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO) |
| FINISHING CAPABILITIES | With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Halffold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming |
| SUPPORTED MEDIA TYPES | Multi-purpose Tray: Thin, Plain, Recycled, Color, Heavy, Tracing,1 Bond, Transparency, Labels, Pre-punched, Letterhead, Tab Paper Decks: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead, Tab2 |
| SUPPORTED MEDIA SIZES | Multi-purpose Tray: 13″x19″, 12″x18″, 11″x17″, Legal, Letter, Letter-R, Executive, Statement-R Custom Size/Free Size (4″ x 5-7/8″ to 13″ x 19-1/4″) Paper Decks: Letter Paper Cassettes: 13″x19″, 12″x18″, 11″x17″, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2″ x 7-1/8″ to 13″ x 19-1/4″) |
| SUPPORTED MEDIA WEIGHTS | Paper Decks/ Cassettes: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2) Multi-purpose Tray: 14 lb. Bond to 140 lb. Index (52 to 256 g/m2) Duplexing: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2) |
| PRINT/COPY SPEED | Up to 95 ppm (Letter) Up to 73 ppm (Letter-R) Up to 60 ppm (Legal) Up to 49 ppm (11″ x 17″) |
| WARM-UP TIME | From Power On: Approx. 60 Seconds3 From Sleep Mode: Approx. 60 Seconds4 Quick Startup Mode: 4 Seconds or less5 |
| DIMENSIONS (W x D x H) | Standard: 26-3/8″ x 30-3/8″ x 46-5/8″ (670 mm x 770 mm x 1,185 mm) With Optional Upright Touch-panel: 46-1/8″ x 30-3/8″ x 49-1/4″ (1,170 mm x 770 mm x 1,252 mm) |
| INSTALLATION SPACE (W x D x H) | Basic: 60-3/8″ x 53-1/4″ (1,533 x 1,353 mm)6 Fully Configured: 199-1/2″ x 55-1/2″ (5,068 x 1,409 mm)7 |
| WEIGHT | Standard: Approx. 487.2 lb (221 kg)8 With Optional Upright Touch-panel: Approx. 496.0 lb (225 kg)8 |
| PRINT SPECIFICATIONS | |
| PRINT RESOLUTION (dpi) | 1200 x 1200 |
| STANDARD PAGE DESCRIPTION LANGUAGES | UFR II, PCL®6, Adobe® PS® 3 |
| SUPPORTED FILE TYPES | PDF, TIFF, JPEG, EPS,9 XPS |
| PRINTING FROM MOBILE AND CLOUD-BASED SERVICES | A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. |
| FONTS | PCL Fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),10 Barcode fonts11 PS Fonts: 136 Roman |
| OPERATING SYSTEM 12 | UFRII/PS: Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/ Server 2016/Server 2019, MAC OS X (10.10 or later) PCL: Server 2008/Windows 7/Server 2008 R2/ Server 2012/Windows 8.1/Server 2012 R2/ Windows 10/Server 2016 PS: Server 2008/Windows 7/Server 2008 R2/ Server 2012/Windows 8.1/Server 2012 R2/ Windows 10/Server 2016, MAC OS X (10.9 or later) |
| COPY SPECIFICATIONS | |
| FIRST-COPY-OUT-TIME | As Fast as 2.7 Seconds |
| COPY RESOLUTION (dpi) | 600 x 600 |
| MULTIPLE COPIES | Up to 9,999 Copies |
| MAGNIFICATION | 25%-400% (1% Increments) |
| PRESET REDUCTION / ENLARGEMENT | 25%, 50%, 64%, 73%, 78% 100%(1:1), 121%, 129%, 200%, 400% |
| SCAN SPECIFICATIONS | |
| TYPE | Single-pass Duplexing Automatic Document Feeder |
| DOCUMENT FEEDER PAPER CAPACITY | Up to 200 Sheets (20 lb. Bond) |
| DOCUMENT FEEDER SUPPORTED MEDIA SIZES | 11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Custom Size [2-3/4″ x 5-1/2″ to 12″x17″ (70.0 mm x 139.7 mm to 304.8 mm x 431.8 mm)] |
| DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS | Single-sided Scanning: 13 lb. Bond to 80 lb. Cover (50 to 220 g/m2) Double-sided Scanning: 13 lb. Bond to 80 lb. Cover (50 to 220 g/m2) |
| PLATEN ACCEPTABLE ORIGINALS | Sheet, Book, 3-Dimensional Objects |
| PLATEN MAX. SCANNING SIZE | Up to 11-3/4″ x 17″ (297 mm x 431.8 mm) |
| PULL SCAN | Color Network ScanGear2 for both Twain and WIA Supported OS: Windows 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016 |
| SCAN RESOLUTION | Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/ IFAX), (Pull) 600 x 600 Scan for Copy: 600 x 600 Scan for Fax: 600 x 600 |
| SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES | A range of solutions is available to provide scanning to mobile devices or and cloud-based services depending on your requirements. |
| SCAN SPEED (LETTER) | Single-sided Scanning BW/Color: 135/135 (300 dpi), 135/80 (600 dpi) Double-sided Scanning BW/Color: 270/270 (300 dpi), 165/90 (600 dpi) |
| SEND SPECIFICATIONS | |
| DESTINATION | Email/Internet Fax (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional) |
| ADDRESS BOOK | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| COMMUICATION PROTOCOL | File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV Email: SMTP, POP3 |
| FILE FORMAT | TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| FAX SPECIFICATIONS | |
| MAXIMUM NUMBER OF LINES | 4 |
| MODEM SPEED | Super G3: 33.6 Kbps G3: 14.4 Kbps |
| COMPRESSION METHOD | MH, MR, MMR, JBIG |
| RESOLUTION | 400 x 400, 200 x 400, 200 x 200, 200 x 100 |
| SENDING / RECORDING SIZE | Statement-R to 11″ x 17 |
| FAX MEMORY | Up to 30,000 Pages (2,000 Jobs) |
| SPEED DIALS | Max. 200 |
| GROUP DIALS / DESTINATIONS | Max. 199 Dials |
| SEQUENTIAL BROADCAST | Max. 256 Addresses |
| MEMORY BACKUP | Yes |
| STORE SPECIFICATIONS | |
| MAIL BOX (NUMBER SUPPORTED) | 100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, Up to 30,000 Pages (2,000 Jobs) Stored |
| ADVANCED BOX | Communication Protocol: SMB or WebDAV Supported Client PC: Windows (Windows 8.1/10) Concurrent Connections (Max.): SMB: 64 WebDAV: 3 |
| ADVANCED BOX AVAILABLE DISK SPACE | Approx. 16 GB (Standard HDD) Approx. 480 GB (With Optional 1 TB HDD) |
| SECURITY SPECIFICATIONS | |
| AUTHENTICATION | Standard: Universal Login Manager, uniFLOW Online Express,13 User Authentication, Department ID Authentication, (Device and Function Level Log-in), Access Management System Optional: uniFLOW |
| DATA | Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated), Verify System at Startup, McAfee Embedded Control Optional: Hard Disk Drive Mirroring, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW) |
| NETWORK | Standard: IP/Mac Address Filtering, IPsec, TLS Encrypted Communication (v1.0/1.1/1.2/1.3), SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration |
| DOCUMENT | Standard: Secure Watermark, Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature : User Signature |
| ENVIRONMENTAL SPECIFICATIONS | |
| OPERATING ENVIRONMENT | Temperature: 50 to 86 ºF Humidity: 20 to 80 % RH (Relative Humidity) |
| POWER REQUIREMENTS | 110-127V, 60 Hz, 16A |
| POWER CONSUMPTION | Maximum: Approx. 2,032 W Standby: Approx. 240 W14 Sleep Mode: Approx. 0.9 W or less15 Typical Electricity Consumption (TEC) Rating16 8.9 kWh |
| STANDARDS | ENERGY STAR® Certified Rated EPEAT® Gold |
| CONSUMABLES | |
| TONER |
GPR-37 Toner Black |
| TONER YIELD (ESTIMATED @ 6% COVERAGE) |
Black: 70,000 Images |
