Professional Power in a compact unit

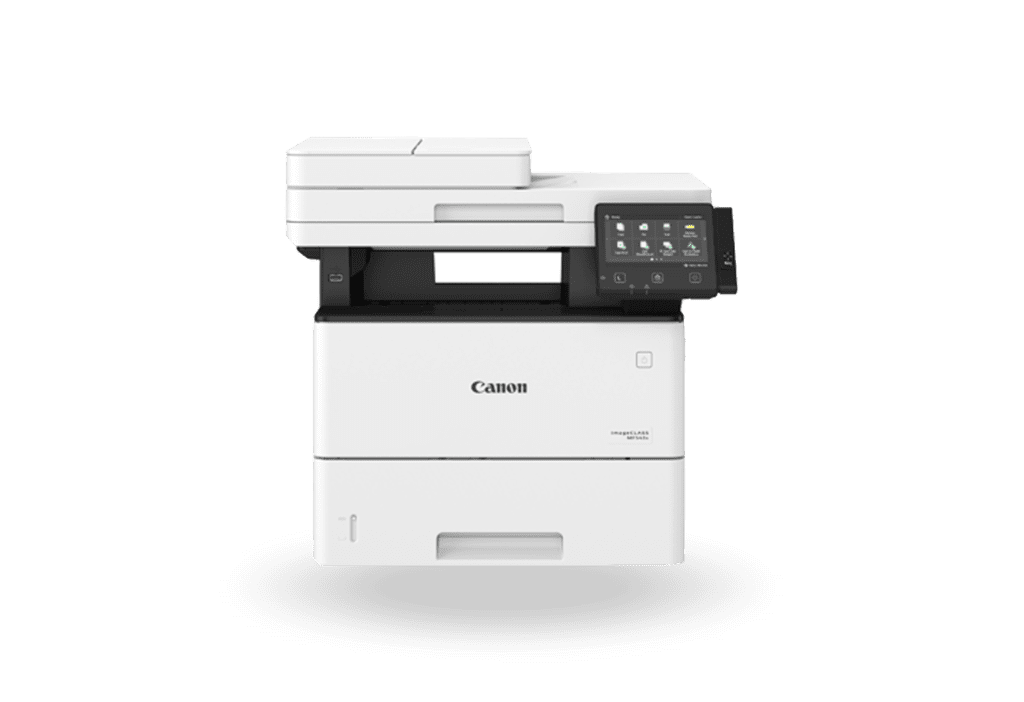

Tight on space? Your Canon MF543x gives you the advantages of a multifunction printer yet it’s built to slip into the tightest space.
Secure Printing
Don’t risk a data breach. Canon’s Secure Print function minimises the risk of a security breach with PIN codes required to release jobs..
Perfect for sharing
Sharing and collaboration is easy with the ability to capture, digitise and share documents on cloud storage services like Google Drive and DropBox.
User friendly
No stress. Operate, manage and maintain your Canon MF543x from an intuitive, user friendly 5 inch colour touch screen.
Minimal effort, maximum results
Enjoy easy cost-effective maintenance with an all-in-one Intermediate Transfer Unit, Photosensitive Drum and Waste Toner Container consumables.
| Printing Method | Monochrome Laser Beam Printing |
| Print Speed | |
| A4 | 43 ppm |
| Letter | 45 ppm |
| 2-Sided | 36 ppm (A4) / 37 ppm (Letter) |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 × 1,200 dpi (eq.) |
| Warm up Time (From Power On) | 14 sec or less |
| First Print Out Time (FPOT) | |
| A4 | Approx. 5.7 sec |
| Letter | Approx. 5.6 sec |
| Recovery Time (From Sleep Mode) | 4 sec or less |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Yes |
| Available Paper Size for Auto Duplex Print | A4, Letter, Legal, Indian Legal |
| Print Margins | 5mm – top, bottom, left and right (Envelope: 10mm) |
| Print Features | Poster, Booklet, Watermark, Page Composer, Toner Saver |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
| Copy Speed A4 | |
| A4 | 43 ppm |
| Letter | 45 ppm |
| Copy Resolution | 600 x 600 dpi |
| First Copy Out Time (FCOT) | |
| A4 | 6.3 sec |
| Letter | 6.0 sec |
| Maximum Number of Copies | Up to 999 copies |
| Reduce/Enlargement | 25 – 400% in 1% increments |
| Copy Features | Erase Frame, Collate, N on 1, ID Card Copy, Passport Copy |
| Scan Resolution | |
| Optical | Platen glass: up to 600 x 600 dpi Feeder: up to 300 x 300 dpi |
| Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size | |
| Platen Glass | 215.9 x 355.6 mm |
| Feeder | 215.9 x 355.6 mm |
| Scan Speed*1 | 1-Sided: 38 ipm (mono), 13 ipm (colour) 2-Sided: 70 ipm (mono), 26 ipm (colour) |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To USB (via USB Host 2.0) | Yes |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
| SEND Method | SMB, Email, FTP, iFAX Simple |
| Colour Mode | Full Color, Grayscale, Monochrome |
| Scan Resolution | 300 x 600 dpi |
| File Format | JPEG, TIFF, PDF, Compact PDF, PDF (OCR) |
| Modem Speed | Up to 33.6 Kbps |
| Fax Resolution | Up to 400 x 400 dpi |
| Compression Method | MH, MR, MMR, JBIG |
| Memory Capacity*2 | Up to 512 pages |
| Favourite Dials (in address book) | 19 dials |
| Speed Dial (Coded dials) | Up to 281 dials |
| Group dials / Destinations | Max. 299 dials / Max. 299 destinations |
| Duplex Fax (Transmission) | Yes |
| Sequential Broadcast | Max. 310 destinations |
| Receive Mode | Fax Only, Manual, Answering, Fax/Tel Auto Switch |
| Memory Backup | Permanent fax memory backup (Backup with flash memory) |
| Fax Features | Fax Forwarding, Dual Access, Remote Reception, PC Fax (Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports |
| Transmission Time | Approx. 2.6 sec |
| Auto Document Feeder (ADF) | Duplex ADF: 50 sheets (80g/m2) |
| Available Paper Size for DADF | A4, B5, A5, A6, Letter, Legal, Statement (Min. 105 x 128 mm to Max. 215.9 x 355.6 mm) |
| Paper Input (based on 80g/m2) |
|
| Standard Cassette | 550 sheets |
| Multi-Purpose Tray | 100 sheets |
| Optional Paper Feeder | 550 sheets x 3 |
| Maximum Paper Input Capacity | 2,300 sheets |
| Paper Output | 250 sheets |
| Paper Sizes | |
| Cassette | A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (Min. 105.0 x 148.0 mm to Max. 216.0 x 355.6 mm) |
| Multi-Purpose Tray | A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (Min. 76.2 x 127.0 mm to Max. 216.0 x 355.6 mm) |
| Optional Paper Feeder | A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (Min. 105.0 x 148.0 mm to Max. 216.0 x 355.6 mm) |
| Paper Types | Plain, Recycled, Coloured, Heavy, Label, Postcard, Envelope |
| Paper Weight | |
| ADF | 50 to 105 g/m2 |
| Cassette / Optional Paper Feeder |
60 to 120 g/m2 |
| Multi-Purpose Tray | 60 to 199 g/m2 |
| Standard Interfaces | |
| Wired | USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure mode, WPS easy Setup, Direct Connection) |
| Network Protocol | |
| LPD, RAW, WSD-Print (IPv4,IPv6) | |
| Scan | Email, SMB, WSD-Scan(IPv4, IPv6), FTP |
| TCP/IP Application Services | Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,
IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv1, SNMPv3 (IPv4,IPv6) |
| Network Security | |
| Wired | IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC |
| Wireless | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) |
| One-Push Wireless Configuration | Wi-Fi Protected Setup (WPS) |
| Other Features | Department ID, Secure Print, Application Library |
| Mobile Solution | Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service |
| Address Book | LDAP |
| Compatible Operating Systems*3 | Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 Mac® OS X 10.9.5 & up*4, Linux*4 |
| Software Included | Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status |
| Device Memory | 1 GB |
| LCD Display | WVGA Colour LCD 5.0″ Touch Screen Display |
| Dimensions (W x D x H) | 480 x 464 x 452 mm |
| Weight | 19.0 kg |
| Power Consumption | |
| Maximum | 1,420 W |
| Operation (Average) | Approx. 590 W |
| Standby (Average) | Approx. 13.6 W |
| Sleep (Average) | Approx. 0.9 W (USB/Wired/Wireless) |
| Noise Levels*5 | |
| Operation | Sound Pressure Level: 54 dB Sound Power Level: 6.8 B |
| Standby | Sound Pressure Level: 24 dB Sound Power Level: 4.0 B |
| Operating Environment | |
| Temperature | 10 – 30°C |
| Humidity | 20% – 80% RH (no condensation) |
| Power Requirements | AC 220-240 V (±10%), 50/60 Hz (±2Hz） |
| Toner Cartridge*6 | |
| Standard | Cartridge 056: 10,000 pages (bundled: 5,100 pages) |
| Low | Cartridge 056L: 5,100 pages |
| High | Cartridge 056H: 21,000 pages |
| Monthly Duty Cycle*7 | 150,000 pages |
| Paper Feeder | Paper Feeder PF-C1 (550 sheets) |
| Barcode Printing | Barcode Printing Kit-E1 |
| Attachment kit for NT-Ware Mi-Card | Mi-Card Attachment Kit-B1 |
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
