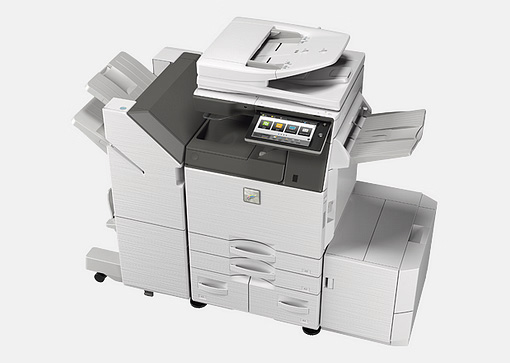

The MX-2630N offers intuitive operation that simplifies complex work processes for everyone on your team. With its expandable functionality and support for easy and secure cloud access, the MX-2630N will be a key player for your enterprise to make your business grow.
Super-Efficient Colour and B/W Output
The MX-2630N delivers a fast output of 26 ppm* in B/W and in full colour. The first copy comes out in just 4.7 seconds in B/W and 6.7 seconds in full colour, saving you valuable time when performing multiple short-run jobs.
Environmentally Friendly
The MX-2630N has been designed to deliver exceptional energy efficiency. The Eco Scan function saves energy by keeping the fusing system shut down during jobs that don’t require its use. Based on prior usage patterns, the MX-2630N can automatically determine how long to wait before going into auto power shut-off mode.
Link with Mail Servers
Scanned data can be conveniently sent via your regular Gmail™ or Microsoft Exchange/Online account. Sending e-mail is as easy as choosing a recipient from your address book on the mail server. Scanned data that you send can be stored on the mail server along with other sent items.
Printer Driver with Easy Setup
The printer driver setup window features a simple design that includes larger buttons and drop-down menus, making it easier than ever to use printer functions.
Sharp Print Release
The Standard Print Release function lets you send documents to the main MFD, which acts as a server and stores them for printing out from any other compatible Sharp MFD on the network. This function comes in handy when the main MFD is in use or under maintenance, letting you finish your job with minimal waiting.
Easy User Interface

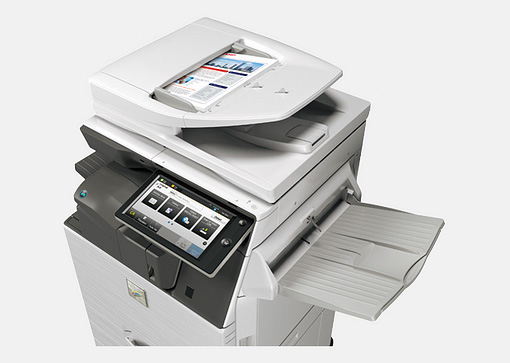

Despite its compact size, the MX-2630N’s 7.0-inch LCD touchscreen features the same user interface found on larger 10.1-inch touchscreens and offers the same ease of use. The interface incorporates an Easy UI mode that makes it simple and intuitive to operate the MFD. And with the Advanced Preview function, you can edit pages easily, preview documents in various modes, and check document finishes and page layout in advance.
Secure Access Control
The MX-2630N support the Active Directory® service, which lets you use the machine’s log-on credentials for internal network folders. System administrators can easily keep track of user credentials, which makes for an efficient and highly secure operational environment. And with single sign-on, you can access internal network folders by simply logging into the MFD—there’s no need to re-enter your IDs and passwords.
| Type | Desktop | ||
|---|---|---|---|
| Engine speed | A4 (8 1/2″ x 11″)*1: Max. 26 ppm A3 (11″ x 17″): Max. 15 ppm A3W: Max. 14 ppm |
||
| Control panel display | 7-inch colour LCD touchscreen | ||
| Paper size | Max. A3W (12″ x 18″), min. A5 (5 1/2″ x 8 1/2″*2) | ||
| Paper capacity (80 g/m2) |
Standard | 650 sheets (550-sheet tray and 100-sheet multi-bypass tray) |
|
| Maximum | 6,300 sheets (650 sheets & optional 550 + 2,100-sheet tray and 3,000-sheet tray) |
||
| Paper weight | Tray | 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover) | |
| Multi-bypass tray | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | ||
| Warm-up time*3 | 14 sec.*4 | ||
| Memory | Standard | 5 GB (copy/print shared) | |
| Option | 500 GB HDD*5 | ||
| Power requirements | Rated local AC voltage ± 10%, 50/60 Hz | ||
| Power consumption | Max. 1.84 kW (220 V to 240 V), max. 1.65 kW (110 V) | ||
| Dimensions (W x D x H)*6 | 608 x 650 x 834 mm (23 15/16″ x 25 19/32″ x 32 27/32″) | ||
| Weight (approx.) | 64 kg (141.1 lbs) | ||
| Original paper size | Max. A3 (11″ x 17″) | |
|---|---|---|
| First copy time*7 | 4.5 sec. | |
| Continuous copy | Max. 9,999 copies | |
| Resolution | Scan | 600 x 600 dpi, 600 x 400 dpi |
| 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) | ||
| Gradation | Equivalent to 256 levels | |
| Zoom range | 25% to 400% (25% to 200% using RSPF) in 1% increments | |
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | |
| Scan method | Push scan (via control panel), pull scan (TWAIN-compliant application) | |
|---|---|---|
| Scan speed*8 | Colour & B/W | Max. 80 originals/min. |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 to 9,600 dpi via user setting*9 |
|
| File formats | TIFF, PDF, PDF/A-1a*10, PDF/A-1b, encrypted PDF, compact PDF*11*12, JPEG*12, XPS, searchable PDF*10, OOXML (docx, xlsx, pptx)*10, text (TXT [UTF-8])*10, rich text (RTF)*10 | |
| Scanner utility | Sharpdesk | |
| Scan destinations | Scan to e-mail/desktop*13/FTP server/network folder (SMB)/USB drive/HDD*14 | |
| Document filing capacity*15 | Main and custom folders: 20,000 pages or 3,000 files |
|---|---|
| Quick file folder: 10,000 pages or 1,000 files | |
| Stored jobs*16 | Copy, print, scan, fax |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Resolution | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | |
|---|---|---|
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T | |
| Supported OS*17 | Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows® 7, Windows® 8.1, Windows® 10, Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 |
|
| Network protocols | TCP/IP | |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD | |
| PDL | Standard | PCL 6 emulation |
| Option | Adobe® PostScript® 3™ | |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 | |
| Compression method | MH/MR/MMR/JBIG | |
|---|---|---|
| Communication protocol | Super G3/G3 | |
| Transmission time | Less than 3 seconds*18 | |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback | |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) | |
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) | |
| Memory | 1 GB (built-in) | |
| Greyscale levels | Equivalent to 256 levels | |
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
