Convert Documents via OCR
OCR capability on the MX-4070N/3570N/3070N lets you convert editable Microsoft® Word, PowerPoint®, or Excel® This means you can do speedy text searches, even with large-volume documents, and you can easily copy and paste text data into other applications. Functions like these help you maximise work efficientcy.
Easy User Interface
The intuitive Easy UI mode makes it easy for anyone to use the MFD’s advanced functions. In this mode, simple function icons are displayed on the 10.1-inch colour LCD touchscreen. Each user can customise the home screen by drag-and-dropping icons for commonly used functions, making for smoother, more efficient operation.
Motion Sensor
A built-in motion sensor detects your approach to the MFD and wakes it from Sleep mode. The control panel lights up and the machine finishes warming up as you enter your desired copy or scan settings. Then, with a minimum of waiting, you simply push the Start button to get the job underway
Secure Access Control
The MX-4070N/3570N/3070N support the Active Directory® service*, which lets you use the machine’s log-on credentials for internal network folders. System administrators can easily keep track of user credentials, which makes for an efficient and highly secure operational environment. And with single sign-on, you can access internal network folders by simply logging into the MFD—there’s no need to re-enter your IDs and passwords.

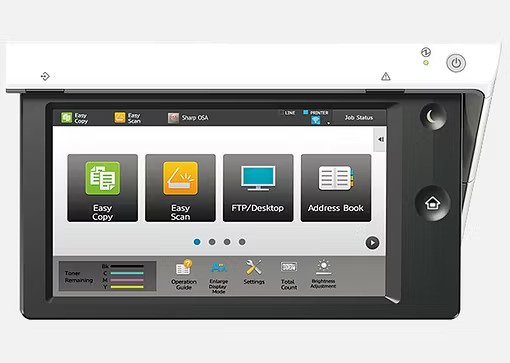

10.1-Inch Colour LCD Touchscreen
A user-friendly touchscreen interface incorporating a new Easy UI mode makes it easy and intuitive to operate the MFD. The Advanced Preview function, meanwhile, lets you check document finishes and page layout in advance, edit pages easily, and preview documents in various modes.
Easy Printing/Scanning with USB Drives
Insert a USB drive into the MFD and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive – which are displayed as thumbnails-or you can scan documents directly to the USB drive.
Remote Operation
The Remote Operation function lets you display the MFD’s main control panel on your PC screen, allowing you to operate every major function directly from your desktop*. This function also enables he administrator to guide an MFD user through necessary procedures and allows remote MFD operation from a wheelchair
| Type | Desktop | |
|---|---|---|
| Engine speed | A4 (8 1/2″ x 11″)*1 | Max. 60/50/40 ppm |
| A3 (11″ x 17″) | Max. 28 (27)/24/19 ppm | |
| A3W (12″ x 18″) | Max. 26/23/18 ppm | |
| Control panel display | 10.1-inch colour LCD touchscreen | |
| Paper size | Max. A3W (12″ x 18″), min. A5 (5 1/2″ x 8 1/2″*2) | |
| Paper capacity (80 g/m2) |
Standard | 650 sheets (550-sheet tray and 100-sheet multi-bypass tray) |
| Maximum | 6,300 sheets (650 sheets & optional 550 + 2,100-sheet tray and 3,000-sheet tray) |
|
| Paper weight | Tray | 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover) |
| Multi-bypass tray | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |
| Warm-up time*3 | 18/16/14 sec.*4 | |
| Memory | 5 GB (copy/print shared) 500 GB HDD*5 | |
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | |
| Power consumption | Max. 1.84 kW (220 V to 240 V), max. 1.65 kW (110 V) | |
| Dimensions (W x D x H)*6 | 616 x 660 x 838 mm (24 17/64″ x 25 63/64″ x 33″) | |
| Weight (approx.) | 72 kg (158.8 lbs) | |
| Original paper size | Max. A3 (11″ x 17″) | |
|---|---|---|
| First copy time*7 | 3.5/3.7/4.5 sec. | |
| Continuous copy | Max. 9,999 copies | |
| Resolution | Scan | 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi |
| 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) |
||
| Gradation | Equivalent to 256 levels | |
| Zoom range | 25% to 400% (25% to 200% using DSPF) in 1% increments | |
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | |
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
|
|---|---|---|
| Scan speed*8 (colour & B/W) |
One-sided | Max. 100 originals/min. |
| Two-sided | Max. 200 originals/min. | |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*9 |
|
| File formats | TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, compact PDF*10, JPEG*10, XPS, searchable PDF, OOXML (docx, xlsx, pptx), text (TXT [UTF-8]), rich text (RTF) | |
| Scanner utility | Sharpdesk | |
| Scan destinations | Scan to e-mail/desktop*11/FTP server/network folder (SMB)/USB drive/HDD | |
| Document filing capacity*12 | Main and custom folders: 20,000 pages or 3,000 files |
|---|---|
| Quick file folder: 10,000 pages or 1,000 files | |
| Stored jobs*13 | Copy, print, scan, fax |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi |
|---|---|
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T |
| Supported OS | Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows® 7, Windows® 8.1, Windows® 10, Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 |
| Network protocols | TCP/IP |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD |
| PDL | PCL 6 emulation, Adobe® PostScript® 3™ |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 |
| Compression method | MH/MR/MMR/JBIG |
|---|---|
| Communication protocol | Super G3/G3 |
| Transmission time | Less than 3 seconds*14 |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) |
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) |
| Memory | 1 GB (built-in) |
| Greyscale levels | Equivalent to 256 levels |
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
